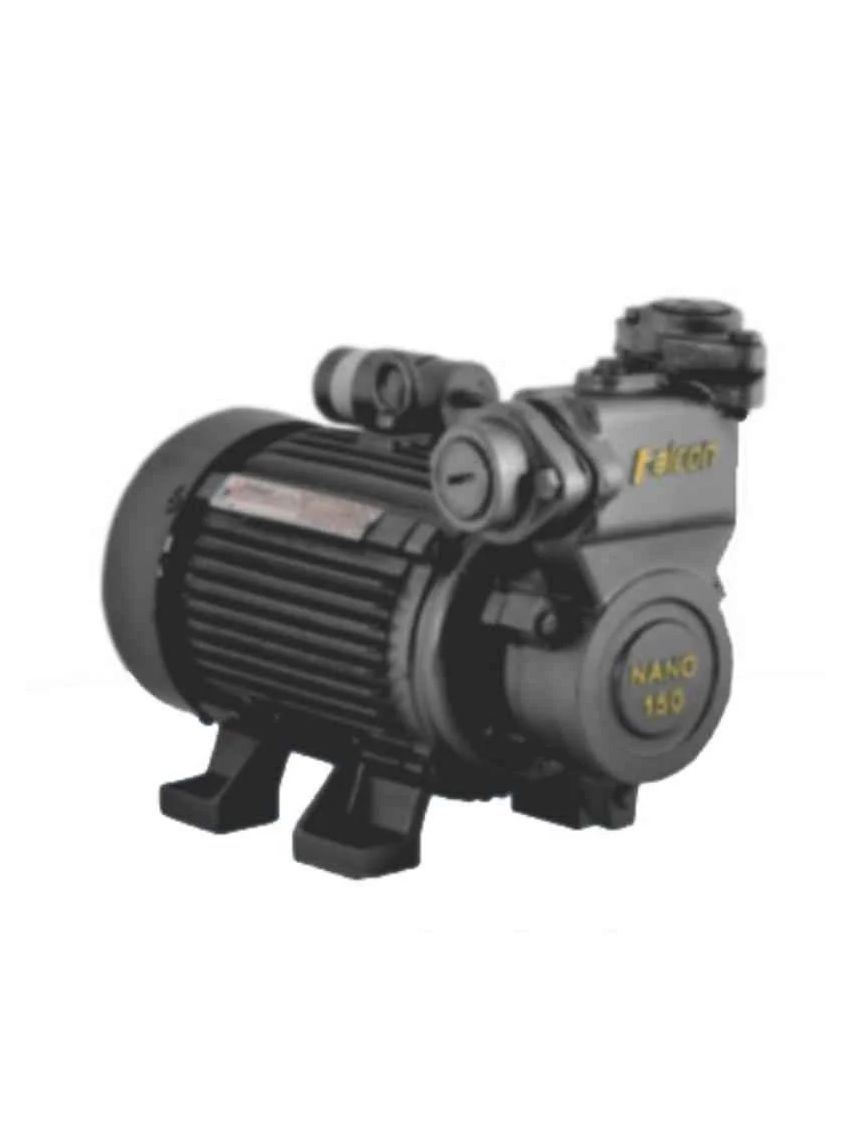

NANO 150 - C SELF PRIMING MONOBLOCK PUMPS

Skip to the beginning of the images gallery

NANO 150 - C SELF PRIMING MONOBLOCK PUMPS

₹9,600.00

Self Priming Series

Falcon regenerative monoset pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor.
Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the
frame. The windings are of high-grade enameled copper wire offer excellent resistance and are varnish impregnated.
Construction of motor frame and usage of quality materials result in high performance and low temperature rise
thereby increasing the life cycle of the motor.

Salient Features

- High operating efficiency resulting in lower power consumption
- Good suction lift characteristics
- Inbuilt thermal overload protector in al single phase pumpsets
- Specially designed for wide voltage operation
- Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
- Back pull-out design for easy servicing and repair
- Double shielded ball bearings, so no need of external lubrication
- Mechanical seal is provided as per customers requirement.

In stock

SKU

NANO 150 - C

Categories: Water Pump MONOBLOCK PUMPS

Guarantee safe & secure checkout

Details

Specification

- Power Range : 1.1 Kw (1.5 HP)
- Version : Single Phase, 200-240V, 50Hz AC Supply
- Speed : 2880 RPM
- Maximum Total Head : 50 Mtr.
- Maximum Flow Rate : 6100 LPH
- Maximum Suction Lift : 6 Mtr.
- Degree of Protection : IP 44
- Class of Insulation : B
- Maximum Ambient Tem. : 40 C
- Sealing : Mechanical Seal
- Type of Duty : S1 (Continuous)
- Direction of Rotation : Single Phase, Clockwise from driving end
- Nominal Pumpset Size (Suction X Delivery in inch) : 1" X 1"

Characteristics Of Clear Cold Water

- Maximum liquid temperature : 33°C max
- Permissible amount of sand : 25 g/m³
- Allowable solids : 3000 ppm (max.)
- Chloride ion density : 500 ppm (max.)
- Turbidity : 50 ppm silica scale (max.)
- Hardness (Drinking Water) : 300 ppm (max.)
- Specific gravity : 1.004 (max.)
- Viscosity : 1.75 x 10 m²/sec (max.)
- Ph Value : 6.5 to 8.5
