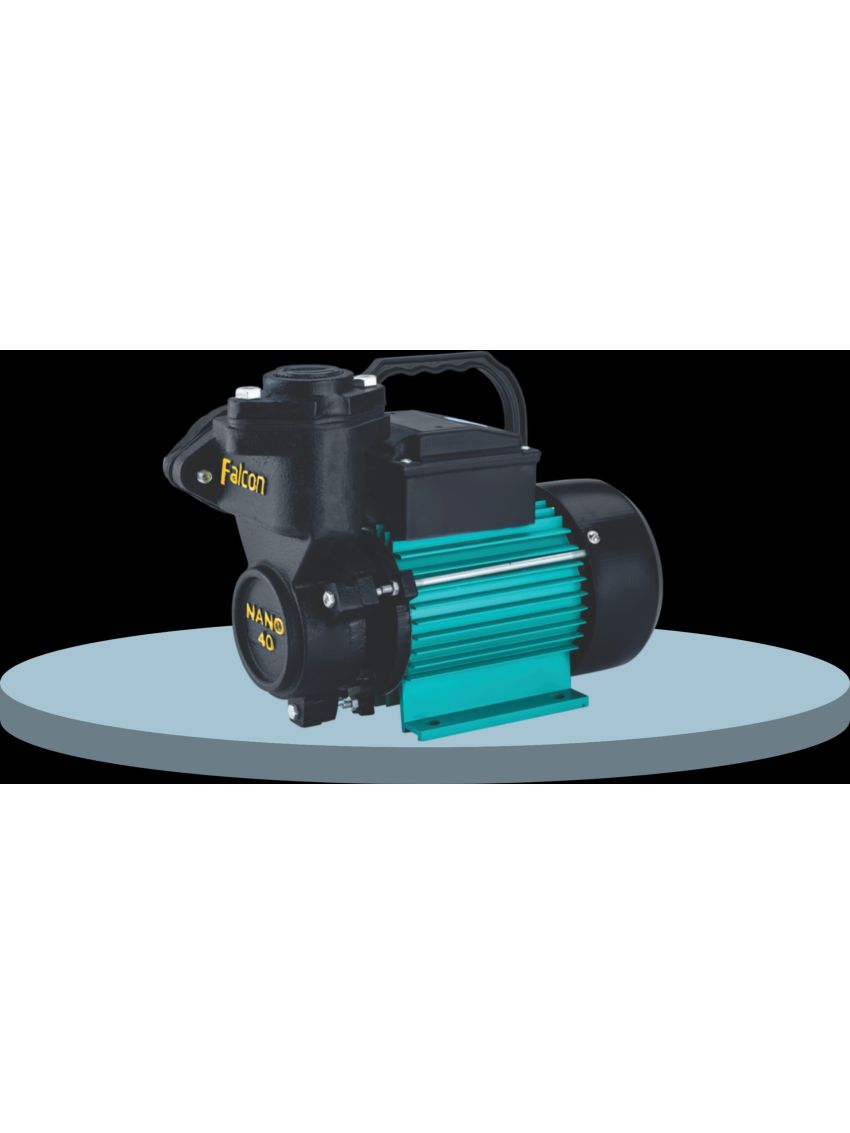

NANO-40 SELF PRIMING MONOBLOCK PUMPS

• High operating efficiency resulting in lower power consumption
• Good suction lift characteristics
• Inbuilt thermal overload protector in al single phase pumpsets
• Specially designed for wide voltage operation
• Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
• Back pull-out design for easy servicing and repair
• Double shielded ball bearings, so no need of external lubrication
• Mechanical seal is provided as per customers requirement.

Power Range : 0.37Kw (0.5 HP)

Version : Single Phase, 200-240V, 50Hz AC Supply

Speed : 2880 RPM

Maximum Total Head : 25 Mtr.

Maximum Flow Rate : 2160 LPH

Maximum Suction Lift : 5 Mtr.

Degree of Protection : IP 44 - Class of Insulation : B 0

Maximum Ambient Tem. : 40 C

Sealing : Mechanical Seal

Type of Duty : S1 (Continuous)

Direction of Rotation : Single Phase, Clockwise from driving end

Nominal Pumpset Size (Suction X Delivery in inch) : 1" X 1"

Maximum liquid temperature : 33°C max

Permissible amount of sand : 25 g/m³

Allowable solids : 3000 ppm (max.)

Chloride ion density : 500 ppm (max.)

Turbidity : 50 ppm silica scale (max.)

Hardness (Drinking Water) : 300 ppm (max.)

Specific gravity : 1.004 (max.) 6

Viscosity : 1.75 x 10 m²/sec (max.)

Ph Value : 6.5 to 8.5

Part Name                            Material
Mechanical Seal     :            Carbon & Ceramic
Motor Shaft            :             SS-410
Motor Body            :             Aluminium / FG-260
Bearing                   :             SKF
End Cover              :             FG-260
Bracket                   :             FG-260
Flange                    :              FG-260
Casing                    :              FG-260
Impeller                 :              Brass
Cooling Fan           :               Plastic
