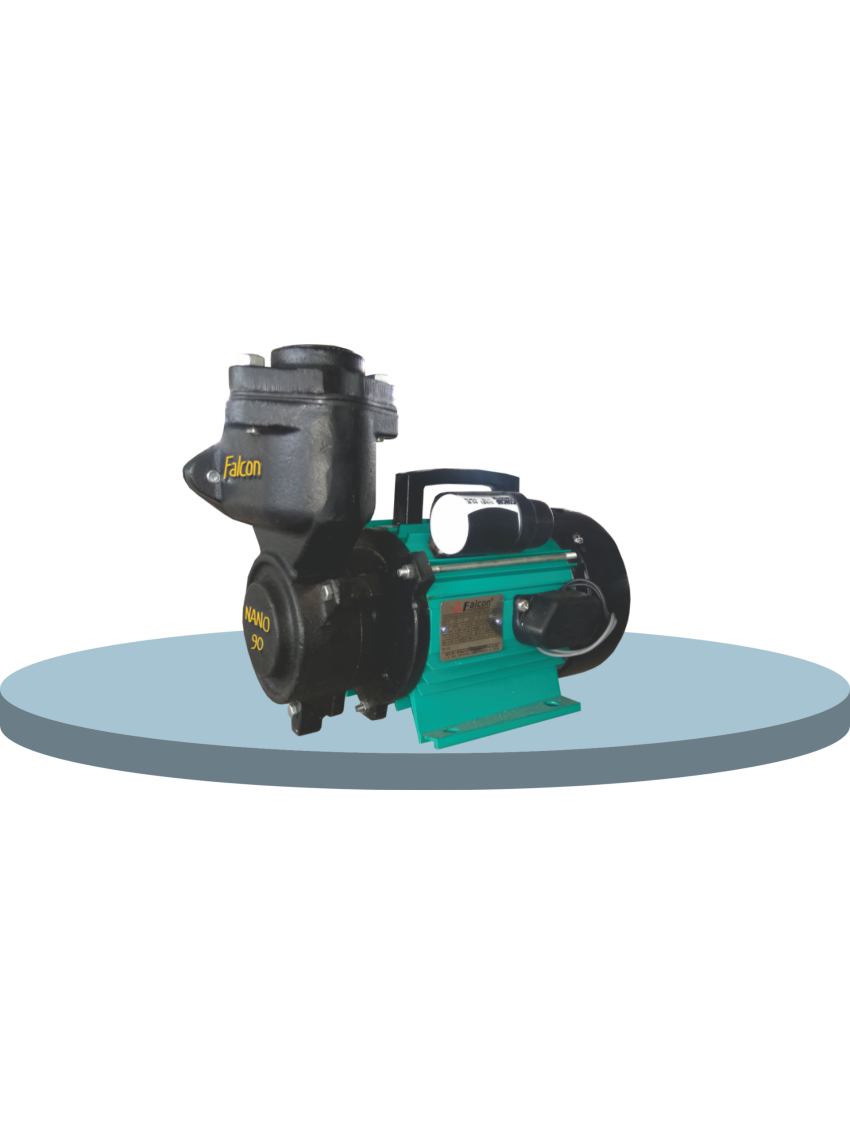

SELF PRIMING NANO-90 MONOBLOCK PUMPS
₹5,100.00
- Power Range : 0.75Kw (1.0 HP)
- Version : Single Phase, 200-240V, 50Hz AC Supply
- Speed : 2880 RPM
- Maximum Total Head : 35 Mtr.
- Maximum Flow Rate : 3030 LPH
- Maximum Suction Lift : 6 Mtr.
- Degree of Protection : IP 44
- Class of Insulation : B 0
- Maximum Ambient Tem. : 40 C
- Sealing : Mechanical Seal
- Type of Duty : S1 (Continuous)
- Direction of Rotation : Single Phase, Clockwise from driving end
- Nominal Pumpset Size (Suction X Delivery in inch) : 1" X 1"
In stock
SKU
NANO-90
Guarantee safe & secure checkout
Description
Falcon regenerative monoset pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire offer excellent resistance and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor
Features
High operating efficiency resulting in lower power consumption
Good suction lift characteristics
Inbuilt thermal overload protector in al single phase pumpsets
Specially designed for wide voltage operation
Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
Back pull-out design for easy servicing and repair
Double shielded ball bearings, so no need of external lubrication
Mechanical seal is provided as per customers requirement.
| Brand Product | FALCON |
|---|
