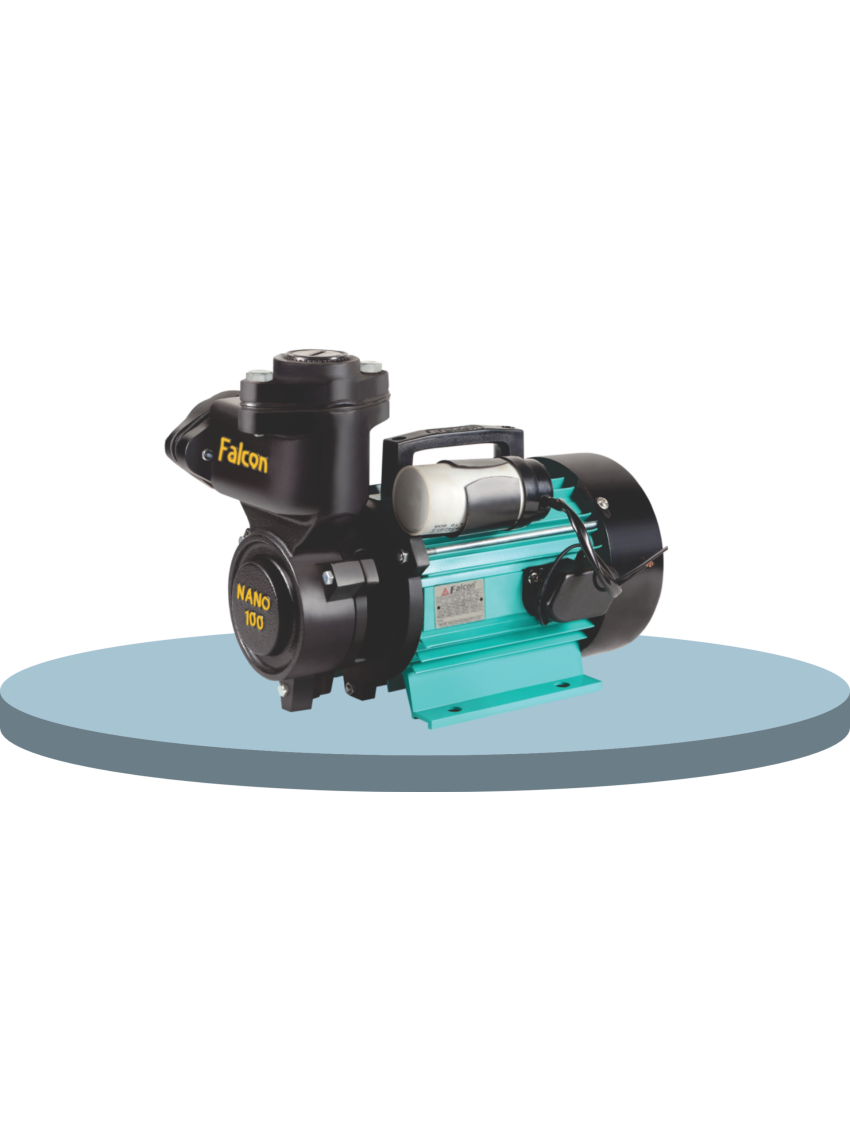

NANO-100 SELF PRIMING MONOBLOCK PUMPS
₹5,700.00
MATERIAL OF CONSTRUCTION - MOTOR
• Mechanical Seal : Carbon & Ceramic
• Motor Shaft : SS-410
• Motor Body : Aluminium
• Bearing : SKF
• End Cover : FG-260
• Bracket : FG-260
• Flange : FG-260
• Casing : FG-260
• Impeller : Brass
• Cooling Fan : Plastic
READ & UNDERSTAND BENIFITS
• High operating efficiency resulting in lower power consumption
• Good suction lift characteristics
• Inbuilt thermal overload protector in al single phase pumpsets
• Specially designed for wide voltage operation
• Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
• Back pull-out design for easy servicing and repair
• Double shielded ball bearings, so no need of external lubrication
• Mechanical seal is provided as per customers requirement.
In stock
SKU
NANO-100
Guarantee safe & secure checkout
specification
- Power Range : 0.75Kw (1.0 HP)
- Version : Single Phase, 200-240V, 50Hz AC Supply
- Speed : 2880 RPM
- Maximum Total Head : 45 Mtr.
- Maximum Flow Rate : 4900 LPH
- Maximum Suction Lift : 6 Mtr.
- Degree of Protection : IP 44
- Class of Insulation : B0
- Maximum Ambient Tem. : 40 C
- Sealing : Mechanical Seal
- Type of Duty : S1 (Continuous)
- Direction of Rotation : Single Phase, Clockwise from driving end
- Nominal Pumpset Size (Suction X Delivery in inch) : 1" X 1"
| Brand Product | FALCON |
|---|
