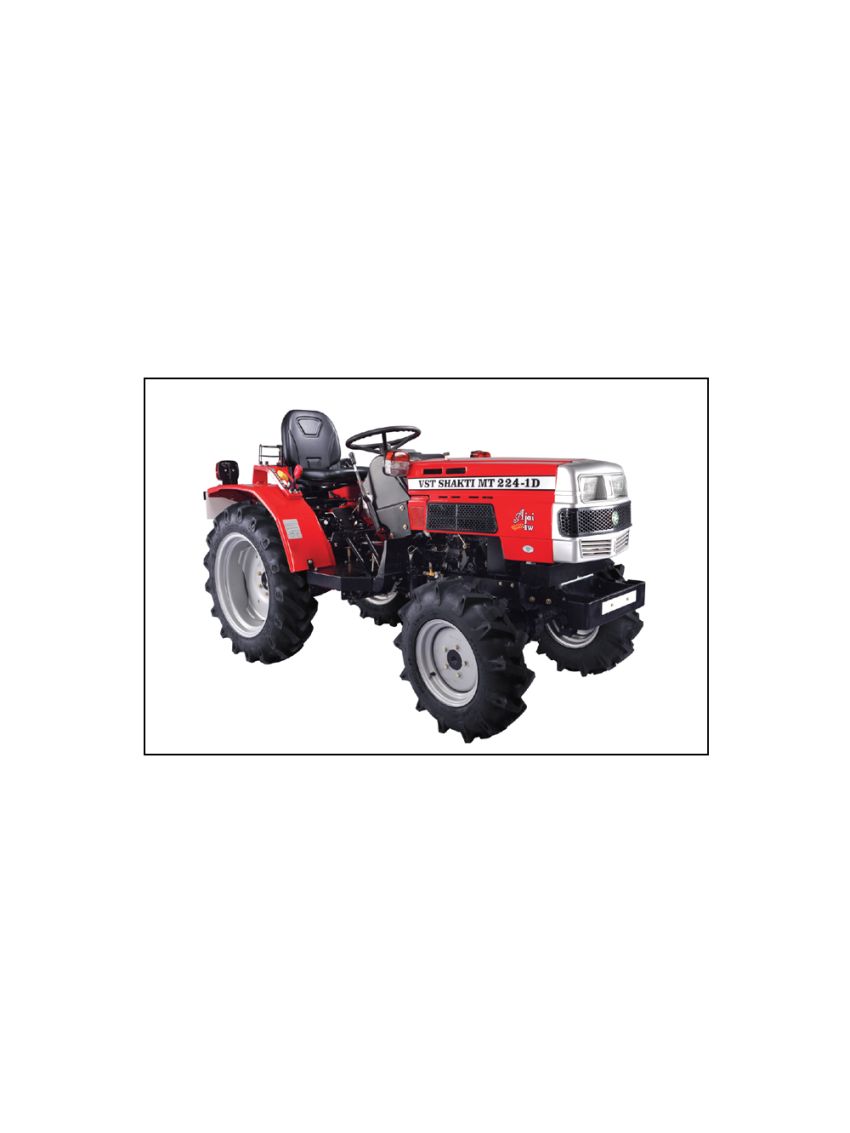

VST SHAKTI MT 224-1 D AJAY 4WD

Add to Wish List
Overview
Name : VST Shakti MT 224 1D AJAI 4WB - Tractor
Model : MT 224-1D / AJAI-4WB

Fuel System
Fuel : High Speed Diesel (H.S.D)
Fuel Tank Capacity : 18 litres
In stock
SKU
MT 224-1D / AJAI-4WB
TractorTractor
Estimated Delivery:
15 - 24 Sep, 2024
Free Shipping & Returns:
On all orders over ₹2,500

Guarantee safe & secure checkout

Overview

Name : VST Shakti MT 224 1D AJAI 4WB - Tractor
Model : MT 224-1D / AJAI-4WB

Engine

Model

Type

Engine HP(kw)

PTO HP(kw)

Rated engine speed

Displacement

Aspiration

Max Torque

S.F.C

Cooling System U.S. qt.(L)

Air Cleaner

Crankcase

V3D

3 Cylinder

22(16.4)/3000

18.8(14.0)/3000

3000 rpm

980 cu.cm

Natural

5.5Kg-m (2200rpm)

225

5 litre

Dry Type

3 litre


Performance

Rotary tilling width

Steering

Clutch

Pump type

Category, 3 point hitch

Hitch lift capacity

900 - 1100 mm

Manual

Dry single

Gear pump

1

750 kg.



Lighting System

Alternator : 12 Volts, 40 Amps

Fuel System

Fuel : High Speed Diesel (H.S.D)
Fuel Tank Capacity : 18 litres


Tranmission

Transmission

Type

Forward

Reverse

Travelling speed

Power Take Off

Brakes

Tyre

Overall Dimenion

Ground Clearance

Turning Radius

Hauling Capacity

Transmission & Hydraulic System Capacity

Hydraulic System Control

Sliding mesh

Manual

6 speeds

2 speeds

19.3 km/hr

1-3/8" - SAE Std Spline Shaft, 2 Speeds 692, 1021 RPM at 3000 eng, rpm.

Oil immersed brakes

Front: 6 x 12, Rear: 8.3 x 20

Width: 1130 mm, Height: 1250 mm, Length: 2565 mm, Wheel base: 1420 mm]

230 mm

W/Brake 2.3m

3 tonnes

13 litre

Auto Draft & Depth control

More Information
Brand Product VST
Write Your Own Review
You're reviewing:VST SHAKTI MT 224-1 D AJAY 4WD
Your Rating

VST SHAKTI MT 224-1 D AJAY 4WD

₹450,000.00
