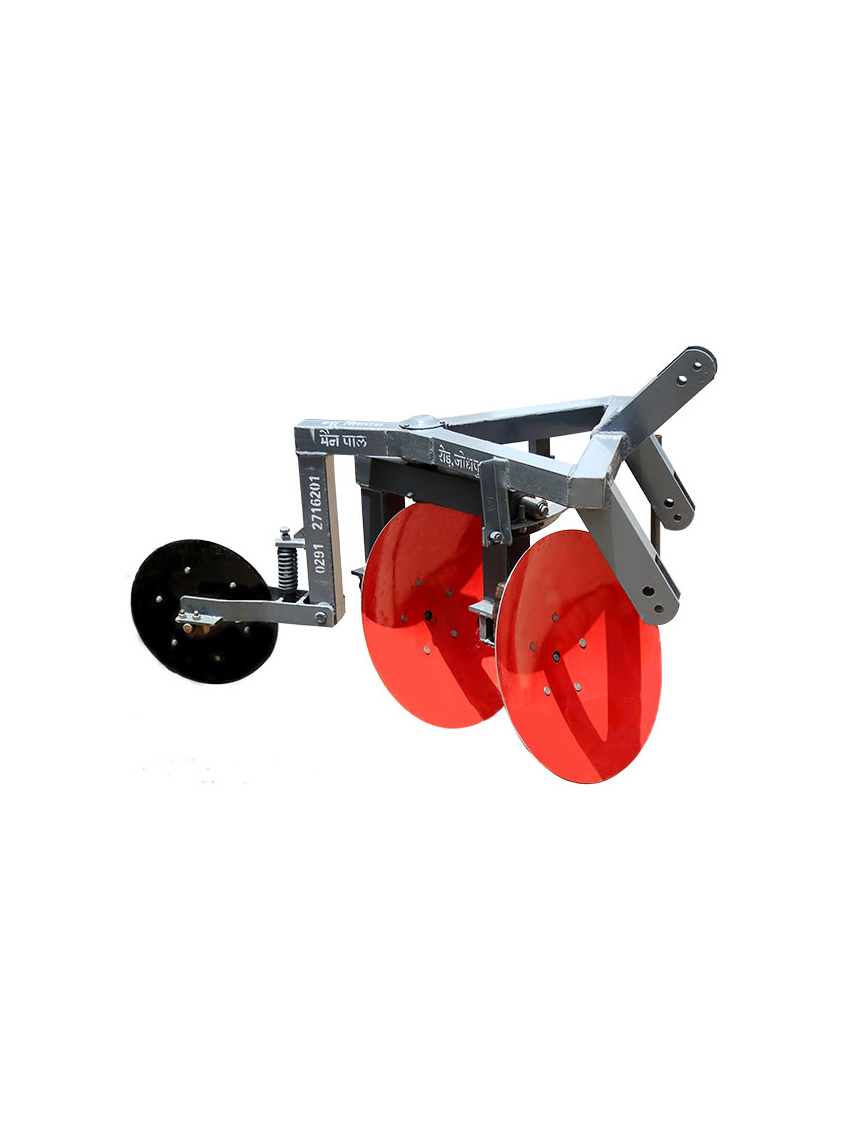

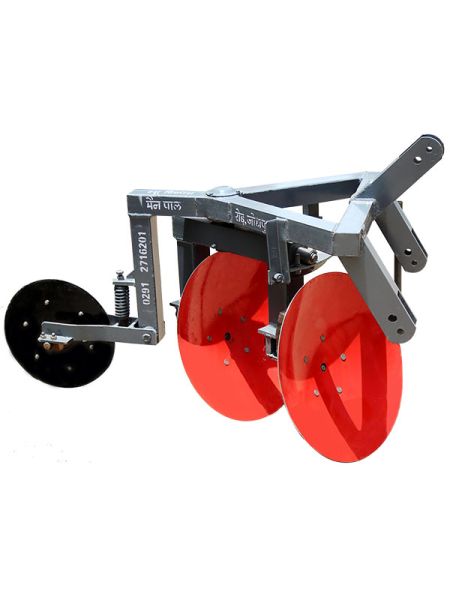

New Vikas Reversible Disc Plough Square Type 2.5″x3″ (FIXED) | 2 Disc

New Vikas Automatic Disc Plough

We have a year of experience in manufacturing of ploughing Machines such as Reversible Mounted Disc Plough. These machines are manufactured after enormous engineering. These are highly appreciated among the clients for its excellent features.

A Disc Plough is a farm tool for loosening or turning the soil before sowing seed or planting. Ploughs were traditionally drawn by oxen and horses, but in modern farms are drawn by tractors. A plough may have a wooden, iron or steel frame, with a disc attached to cut and loosen the soil. It has been fundamental to farming for most of history.

It is fabricated from heavy duty seam less square welded to each other in triangular shape. Another square is clamped at the centre of the main frame through central axle hub. Two standards are also welded to this tube, There is provision on central axle hub for rotating these standards welded tube for changing the face of disc at 90″. A furrow wheel is clamped with the rear side of main frame by flat plates which are pinned with vertically welded square at rear of main frame. Three point linkages are welded at the front square of the main frame.

Features:

• Soil breaking, raising, turning and mixing
  Process the stony areas
  High rate of work and Quality of work
  Uninterrupted service in hard, dry and scorching conditions
  Work in trashy, stumpy land conditions
  High trash clearance owing to heavy duty seamless mild steel frame
  Operate under heavy crop residue
  3-point linkages
