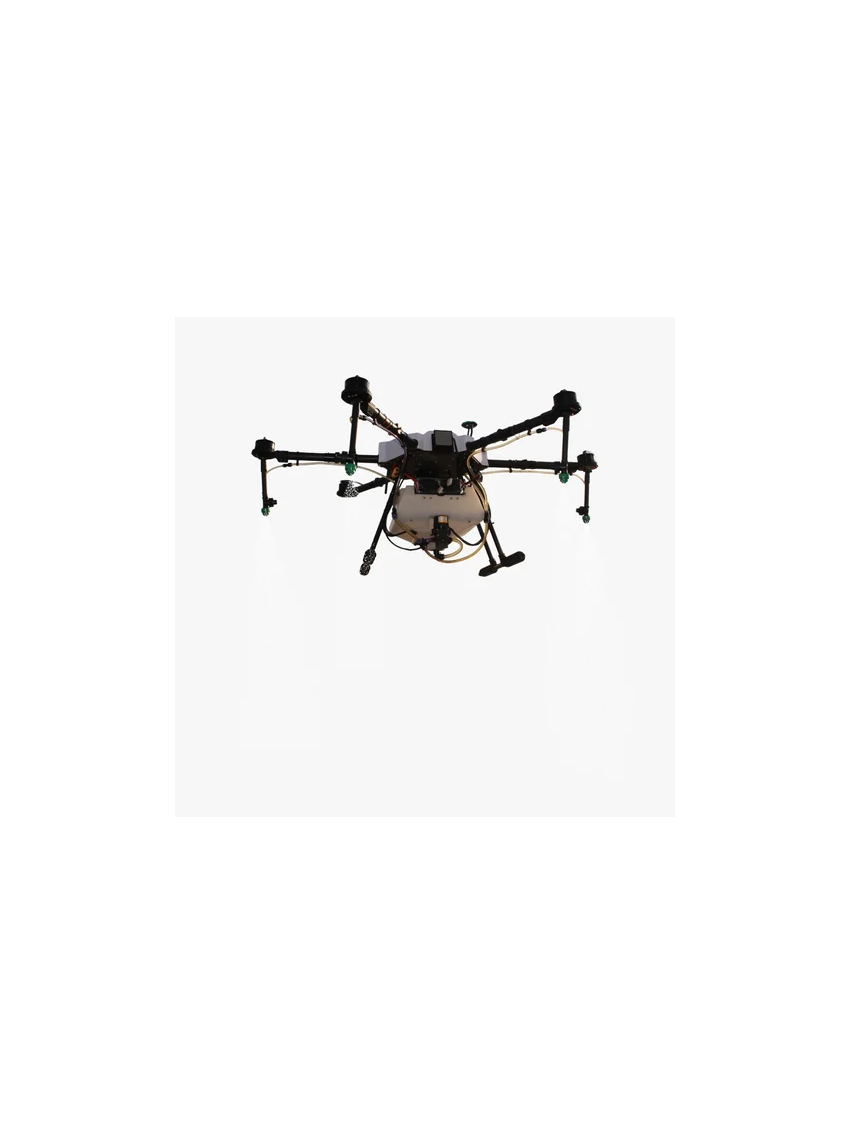

Agribot Agri Drone

• About Agribot
  Agribot is a solution to various farming problems. It is a hexacopter used to spray plant protection chemicals and broadcast seed granules on land. Agribot is tested by IARI, PAU, HAU, and many corporations as the best suited agricultural Drone for spraying over all types of crops and farmlands. To make Technically most advanced yet easy to use Drones for applications like Agriculture, Survey, Surveillance, Logistics and make it available in all parts of South-East Asia. Our facilities includes :-

  Manufacturing capacity of 1000 AGRIBOT per month.
  Service centers in 10 states to provide after sales support to customers.
  Dealer & Distributor network Pan India.
  Selling to multiple Customers - Farmers, Corporate customers & Institutions.
  India's 1st DGCA approved multipurpose advanced drone.
  Multi purpose drone spray/broadcast/crop health analysis.
  Autonomous drone - spray 1 acres in 6 minutes.
  Battery flight time-20 minutes(1 hectare spray).
  Radar based collision avoidance & terrain following.
  RTL -Tank empty, Battery drain, Mission complete.
  Geo fencing, Smart battery fair safe.
  Live HD video streaming at GCS with range-5km.
  UIN & Insurance Available.

AGRIBOT SPECIFICATION

Structure : Hexacopter strucature, more stable and reliable, FOS - 3.

Flight modes : Fully autonomous, Semi-autonomous and manual modes.

Return to launch : Empty tank, Battery drained, Mission complete.

Capacity : UPTO 8 acres / Hours.

Battery Fly time : UPTO 20 Minutes with payload. Spray capacity per day (8 Hours). 30 Acres with multiple bettery sets.

Range : Flies Up to 5 Km (LOS) using ground control station.

RADAR based collision avoidance : Detects tree, Poles, Wires etc in Autonomous mode (22 Meter) & Re- route the path.

RADAR based Terrain Folliwing : Detects Variable height of crop canopy and maintain constent spray height of 2 meter.

Resume Mission : Autonomous resume mission within so can accuracy.

Live video streamingon GC : 2 MP FPV camera mounted on drone.

Smart battery fails safe : The amount of anrgy left and refarme back to home (RTH)

Maximun Take of weight : 23.3 KG.

Diagoal wheelbase of frame : 120 mm.

Folded Size (L*B*H) : 762mm*762 mm* 483mm.

Maximum Height : 10 meters.

Maximum Flight time : 15-20 Minutes (with Payloud)

Maximum Hovering time : 25 Minutes (without Payloud).
